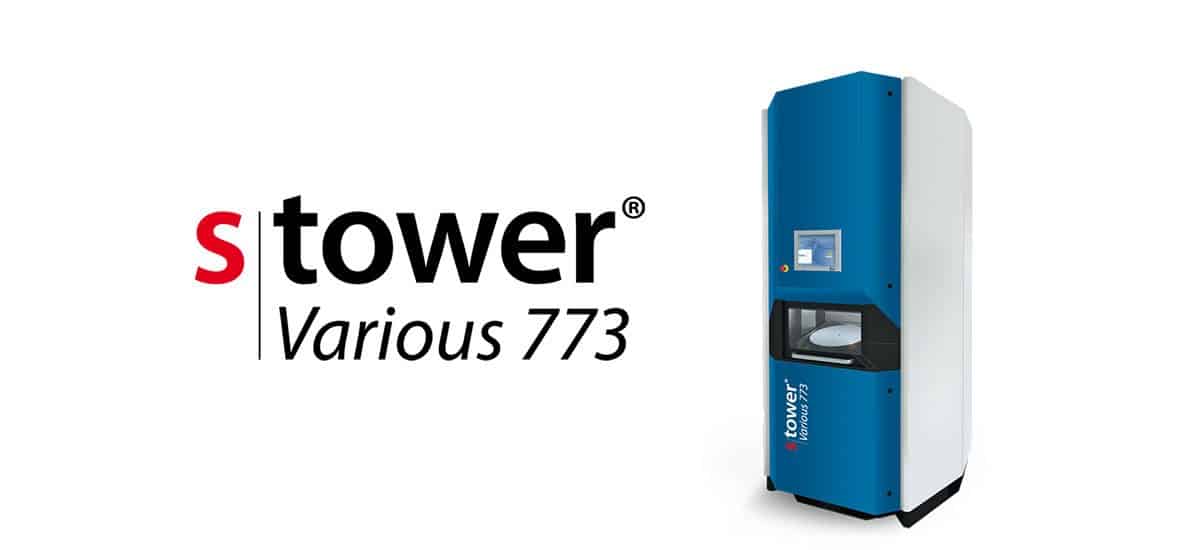

SMD storage system s|tower® Various 773

The s|tower® Various 773 is able to take up 773 7″ – 15″ SMD reels and can be expanded to a capacity of 1.070 SMD reels via product carrier boxes. In addition, layout of the tower’s 7″ and 13″ storage bins can be individually configured in diameter and belt width.

The s|tower® Various 773 is designed for belt widths of up to 56 mm and is also usable for the universal storage of materials and components.

Capacity 773 SMD reels (7″ – 15″)
Expandable up to 1.070 SMD reels
Controlled MSD storage
Access time within 5 to 10 seconds
Modularly expandable

SMD reel storage

The gripping arm of the s|tower® Various transports single SMD reels in defined storage places.
Carrier boxes are not required for the storage of single SMD reels.

Capacity: 773 SMD reels (7″ – 15″)
Expandable up to 1.070 SMD reels
Belt width: up to 56 mm

Specification

2015_Specifications_FUJI_sItower_773.pdf

s-tower^® SmartCarrier

For bulk materials optional SmartCarrier (13″/15″) are available.

Transport mass: up to 5 kg
max. dimensions: 390 mm x 390 mm x 77 mm (W/D/H)

SmartCarrier product informationen

Dry Flow system

The new s|tower® DryFlow is unique because it combines the advantages of an automatic storage system with the advantages of a drying oven, the possibility of targeted re-drying at room temperature and also has significantly lower energy consumption (only approx. 10%) compared to alternative storage systems.

Product informationen
