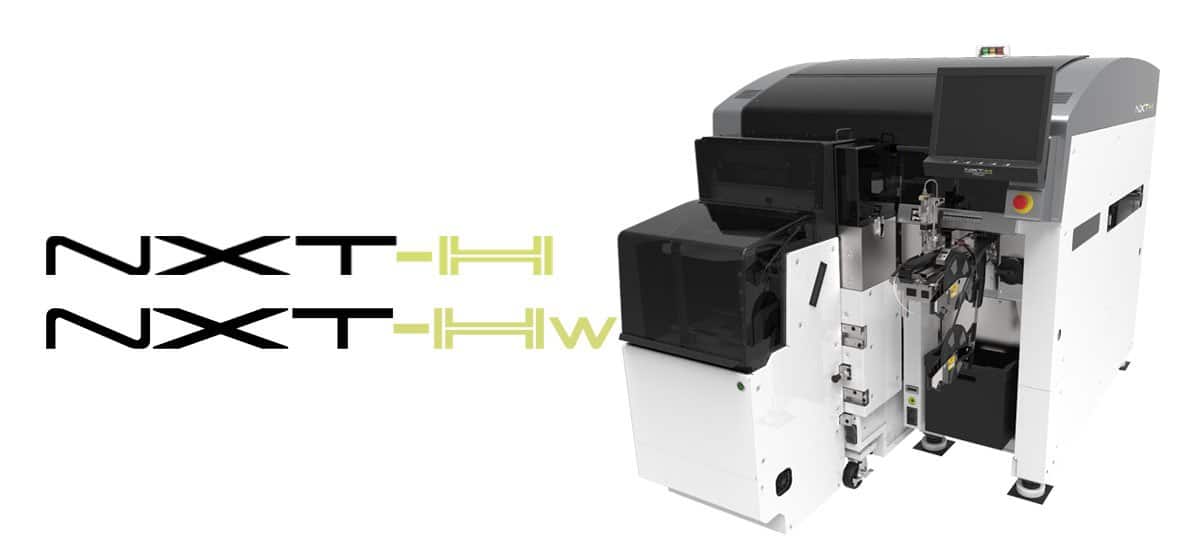

NXT-H Fuji Ultra Accurate Placement Platform
SERVICE-HOTLINE
Technical Service
Phone +49 6107 6842-237
Fax +49 6107 6842-220
Spare parts
Phone +49 6107 6842-160
Fax +49 6107 6842-210
Monday to Friday
7.00 a.m. – 6 p.m.
Dies and SMT in one machine
Hybrid Placing Machine
This machine is based on the surface mount technology for placing SMD parts in high speed and incorporates semi-conductor technology for placing die parts with high accuracy. The NXT-H allows you to go form a batch process using dedicated machines to an innovative inline production process.

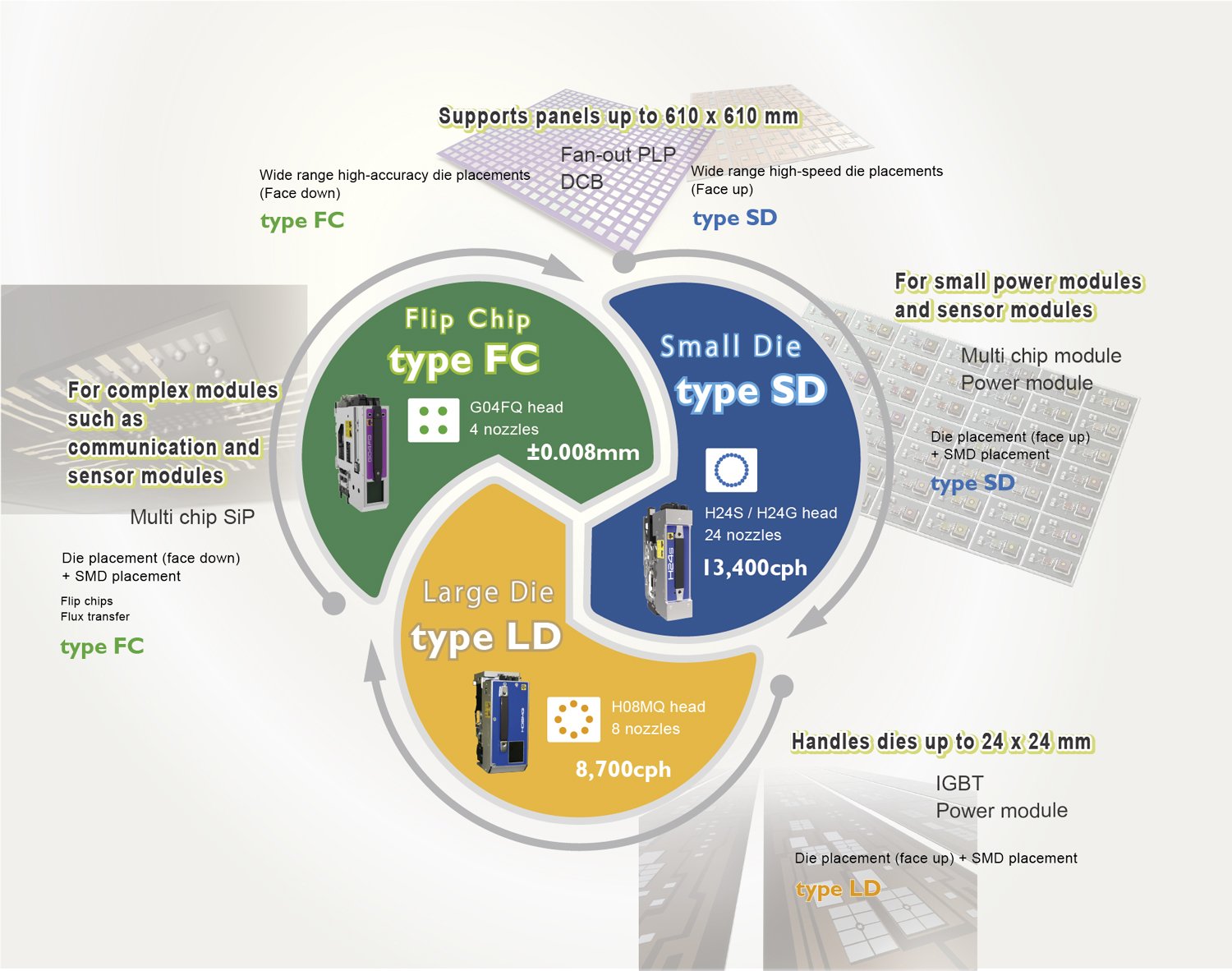

- Supports panels up to 610 x 610 mm
- For small power modules and sensor modules
- Handles dies up to 24 x 24 mm
- For complex modules such as communication and sensor modules
- Can load dies and SMTs with different supply methods

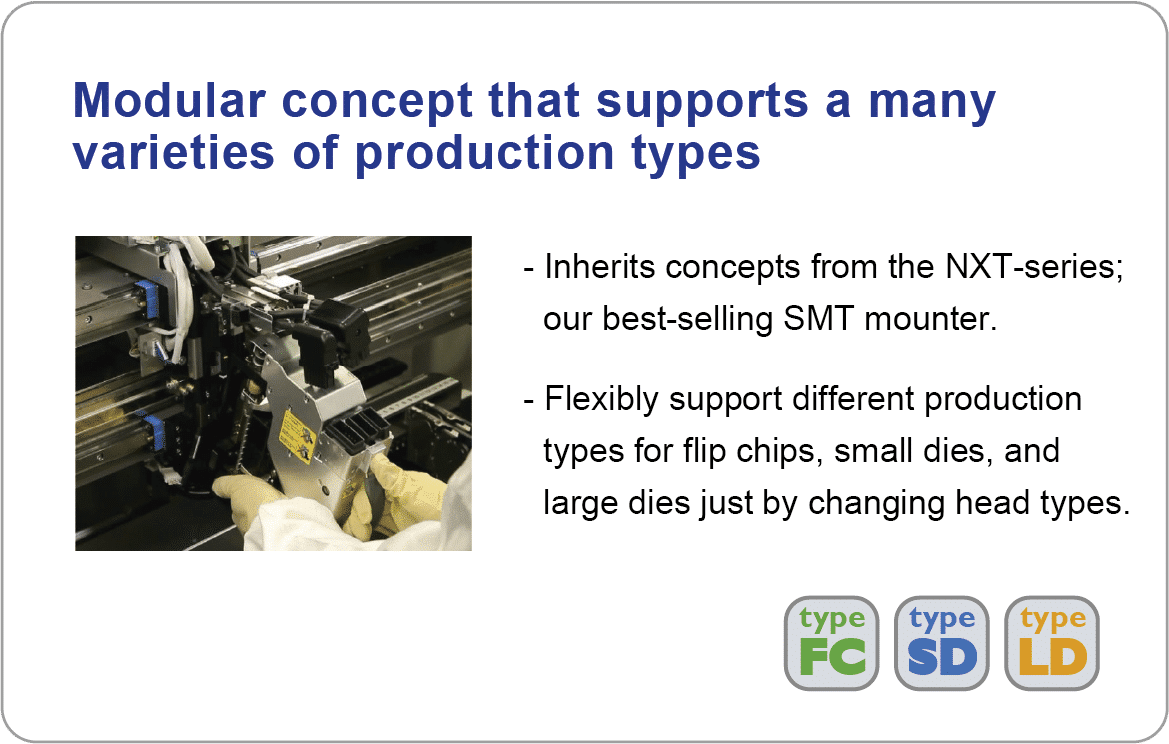

- Modular concept that supports a many varieties of production types
- Supports flip chips and face-up supply

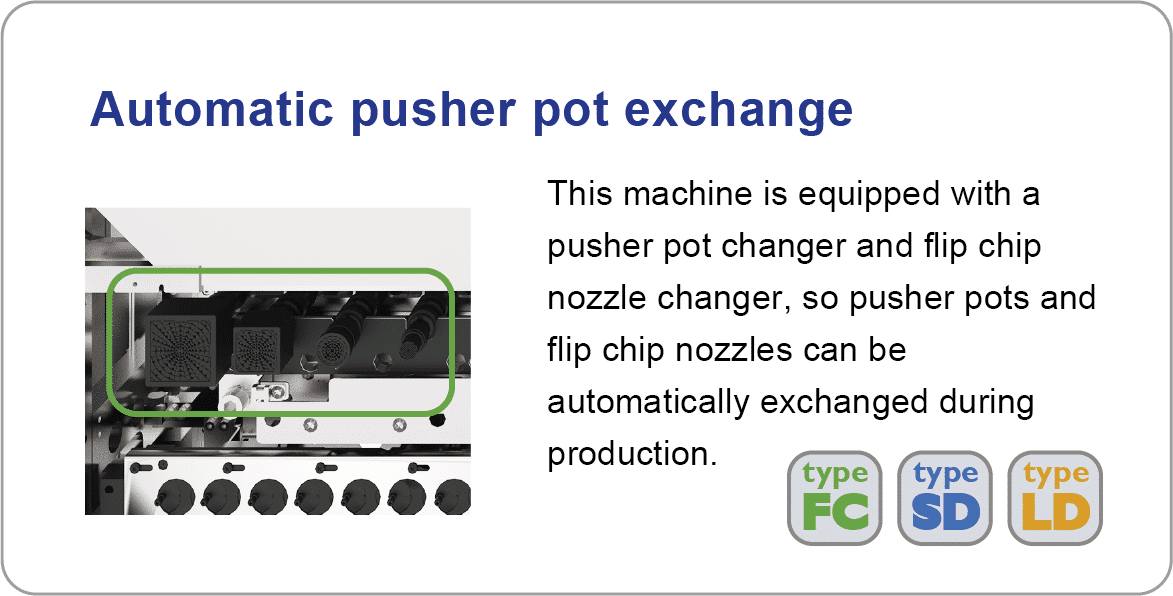

- Automatic pusher pot exchange
Features

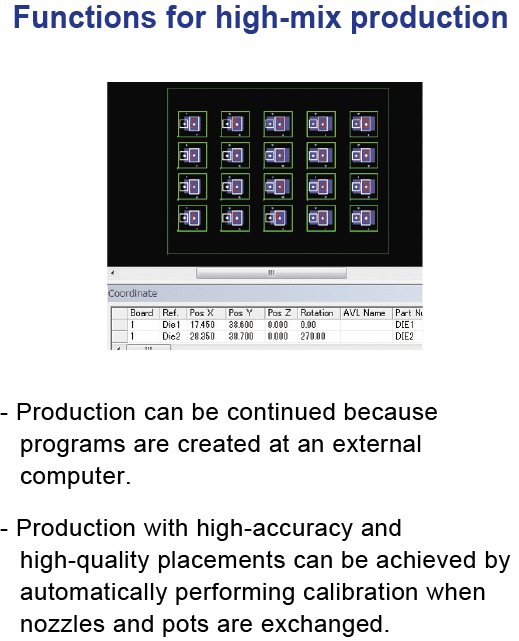

- Functions for high-mix production
- Wafer map display

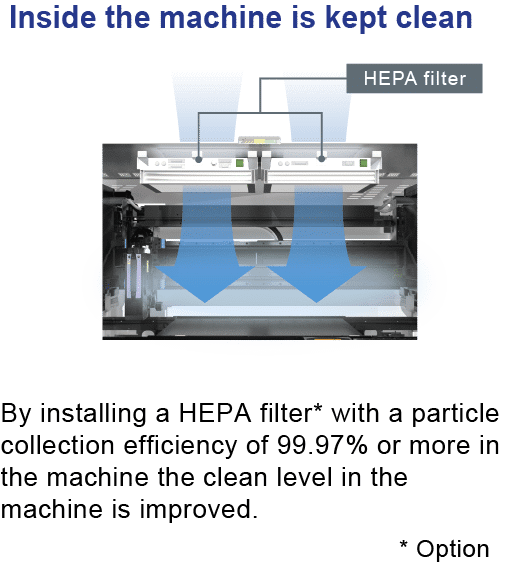

- Inside machine is kept clean

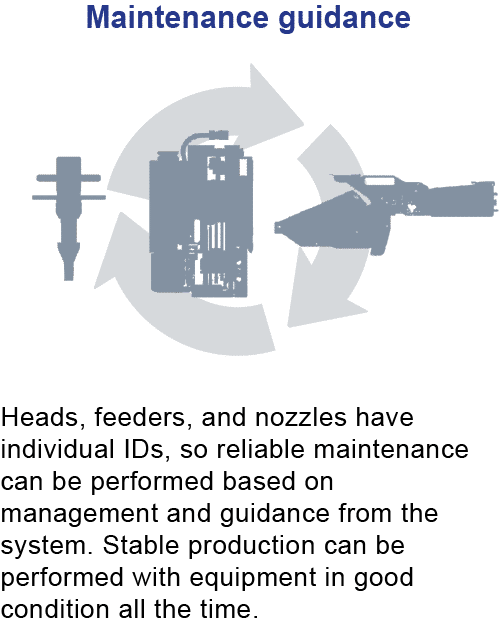

- Maintenance guidance
Specification
